Why take this course?

🚀 Course Title: Geometric Dimensioning & Tolerancing (GD&T): Advanced Concepts

🎓 Headline: Master Advanced GD&T Concepts for Precision Engineering on Patterns, Slots, and Irregular Parts!


Course Description:

Embark on a comprehensive journey through the complex world of Geometric Dimensioning & Tolerancing (GD&T) with our advanced course designed to elevate your understanding and application skills. This course will equip you with the expertise to interpret and apply intricate GD&T principles to ensure precision and reliability in engineering components.

Topics Covered:

  • 🔍 Profile Tolerance:

    • Relimited control of profile ✂️
    • Biased tolerance zone 📏
    • Application of profile on Flange part 🏭
  • 🌐 Tolerancing Patterns:

    • How to tolerate patterns with multiple examples 🖼️
    • Using Patterns as datums 🔁
  • 🧠 Refinement of GD&T Concepts:

    • Refinement of Orientation and Form in Position and Profile tolerance 🎯
    • Auxiliary datums - Understanding beyond the datum reference frame 🌍
    • Inclined datum features - Real-world examples ∠
  • 🤔 Simultaneous Requirements:

    • Defining simultaneous requirements 🤯
    • Differentiating between simultaneous and separate requirements 🗺️
    • Gauging with simultaneous and separate requirements 📊
  • 🛠 Advanced Tolerancing Techniques:

    • Composite Position Control vs Multi Segment Position Control 🏗️
    • Composite vs Multi Segment Profile Control 📈
    • Composite Gauging and Composite Profile Control ⚙️
  • 🧪 GD&T in Practice:

    • Tolerancing of slots with methods and comparisons 🔬
    • Using slots as Datums 🔧
    • Datum Targets: Usage, benefits, and practical applications 🎯
    • Inspection with datum targets 🛍️
    • Zero positional tolerancing at MMC and Projected tolerance zone examples 📝

Course Format:

  • Short "to the point" explanations of concepts 🔑
  • Focus on practical examples to solidify your understanding 🖨️
  • Learn the why and why not, along with comparisons for a holistic approach 🧐

Pre-requisites:

Before diving into advanced GD&T concepts, it is essential to have a firm grasp of the basic principles:

  • Understanding of Basic concepts of GD&T such as:
    • Datums 🔗
    • Modifiers and material conditions ✍️
    • Tolerance zones 🛡️
    • Symbol meanings ❓
    • Concepts of Size, Form, Orientation, and Location 📷
    • Virtual conditions 🌫️

Join us on this advanced GD&T journey and transform your technical expertise with the most sophisticated engineering dimensions! 🌟

Course Gallery

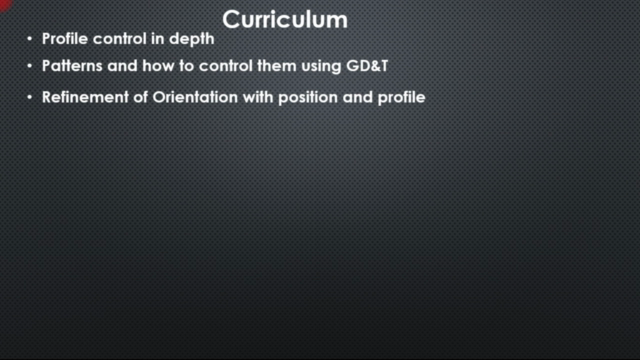

Geometric Dimensioning & Tolerancing : Advanced concepts – Screenshot 1
Screenshot 1Geometric Dimensioning & Tolerancing : Advanced concepts

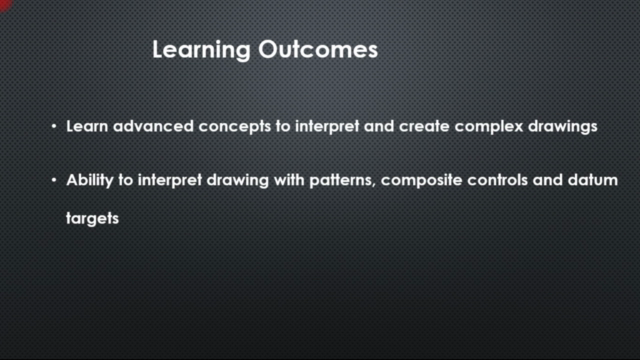

Geometric Dimensioning & Tolerancing : Advanced concepts – Screenshot 2
Screenshot 2Geometric Dimensioning & Tolerancing : Advanced concepts

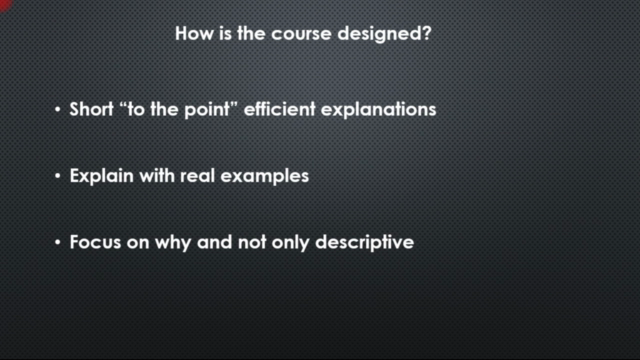

Geometric Dimensioning & Tolerancing : Advanced concepts – Screenshot 3
