GD&T applied to components with case studies

🎓 Master Geometric Dimensioning & Tolerancing (GD&T) for Component Design: Real-World Application with Case Studies

Course Title: GD&T Applied to Components with Case Studies

🚀 Course Description: Dive into the world of advanced Geometric Dimensioning and Tolerancing (GD&T) with our comprehensive online course tailored for design engineers. This isn't just another theoretical course; it's a practical masterclass that focuses on the application of GD&T principles to real-world components. Learn from industry expert Mufaddal Rasheed, who brings years of hands-on experience to guide you through the intricacies of component design and tolerancing schemes that affect assembly systems.

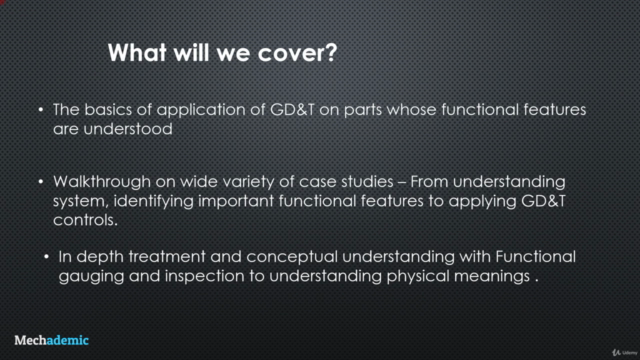

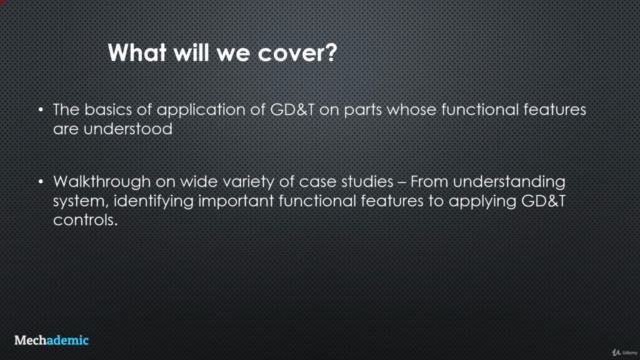

🔍 What You'll Learn:

• Understanding Components: Gain a foundational understanding of how to analyze a component and its functional relationships, applying GD&T principles effectively on engineering drawings.

• In-Depth Case Studies: Explore an array of detailed case studies that dissect the application of GD&T schemes for components such as universal joint yokes, special flanges, latches, steering shaft mount brackets, bike handlebar mount systems, and rocker arm mechanisms. These real-world examples will help you grasp the practical side of GD&T.

🛠️ Key Topics Covered:

1. Datum Schemes: Learn how to set up a datum scheme that is specific to your application's needs.

2. Geometric Controls: Understand and apply various geometric controls, and their significance in design and manufacturing processes.

3. Composite Controllers: Discover where composite positional and profile controls are used, their meanings, and how they translate into practical gauging for your product.

4. Inspection & Functional Gauging: Delve into the inspection and functional gauging procedure based on GD&T drawings to ensure the assembly system functions correctly.

5. Rationalizing Controls: Understand the reasoning behind choosing certain controls over others, ensuring that your design meets its intended function.

📚 Hands-On Learning with Real Applications: The course is designed to transform the way you perceive GD&T. Instead of treating it as a mere standard, you'll learn how to leverage it to create functional and clear drawings that communicate precisely what is needed for manufacturability and assembly.

🎯 Case Studies Galore: From automotive to bicycle components, the case studies in this course are carefully chosen to provide a broad perspective on GD&T application across different industries. Each example is crafted to challenge your understanding and deepen your grasp of practical GD&T.

🤝 Join a Community of Engineers: This course isn't just about learning—it's about joining a community of professionals who understand the power of GD&T in engineering design. By the end of this course, you won't be just another engineer who "knows GD&T"—you'll be an engineer who can apply it effectively to real-world problems.

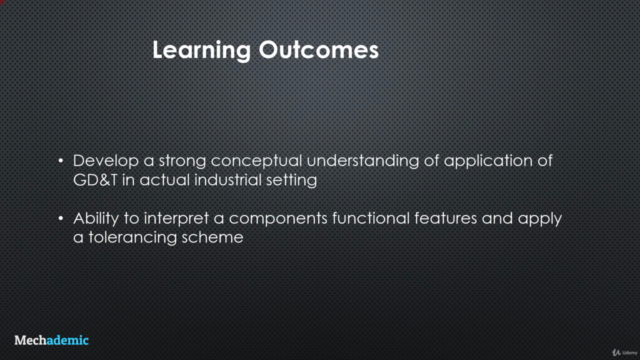

🎯 Learning Outcomes:

• Interpretation Skills: Learn to interpret a component's functional features and apply a tolerancing scheme that optimizes performance and manufacturability.

• Conceptual Mastery: Develop a strong conceptual understanding of applying GD&T in an actual industrial setting, enhancing your problem-solving skills.

📅 Course Schedule: This self-paced course is designed to accommodate busy schedules while ensuring you gain the knowledge and experience needed to excel in your field. Enroll today and start transforming your approach to design, tolerance, and manufacturing with GD&T!

Enroll now and elevate your engineering skills to the next level with real-world expertise from our expert instructor, Mufaddal Rasheed. 🛠️🌟
