Substation Primary Design
Design as per Saudi standard
4.36 (42 reviews)
304
students
6.5 hours
content
May 2024
last update
$13.99
regular price
What you will learn
Transformer Selection and Specifications as per Saudi Standard TES-P-119.35
Auxiliary Transformer Circuit Breaker Sizing as per Saudi Standard 01-TMSS-01

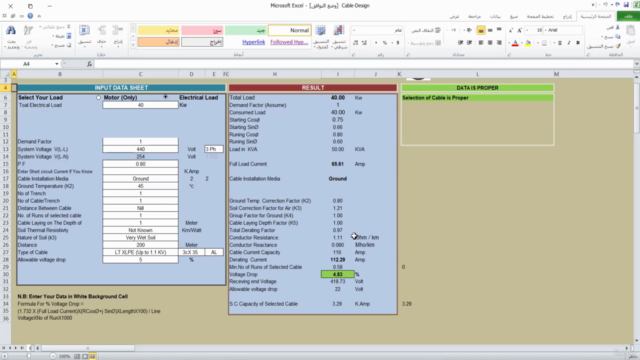

Calculate Sizing of Medium Voltage and Low Voltage Cable as per Saudi Standard TES-P-119.29 by Excel sheet
Calculate Cable sizing By Using Etap Software

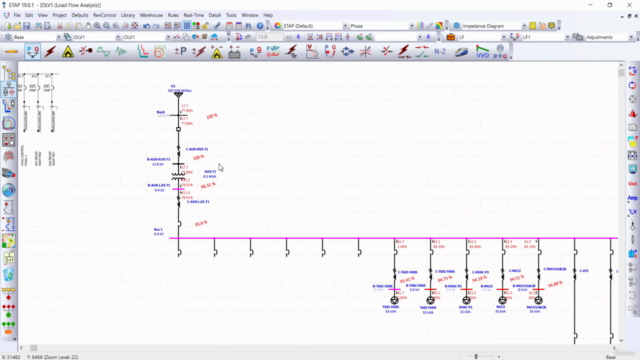

How can Build Substation Single line diagram by Auto Mode in Etap Software ?
Adding alfanar Cable library or any other manufacture in Etap Software
Calculate Sizing of Main AC Distribution panel Circuit Breaker by using Etap Software

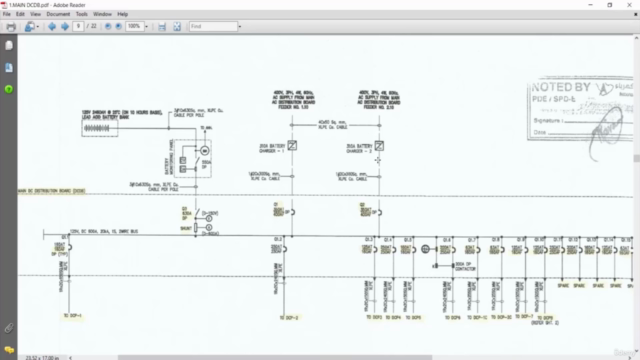

Calculate Sizing of Battery and Charger as per Saudi Standard TES-P-103.03 & TES-P-119.02
Calculate Sizing of DC Cable and DC Circuit breaker
How Can Measure Soil Resistivity ?
Design Earthing Grid as per Saudi Standard TES-P-119.10
Calculation the number of Earthing Rod and Conductor by using CYMgrid Software

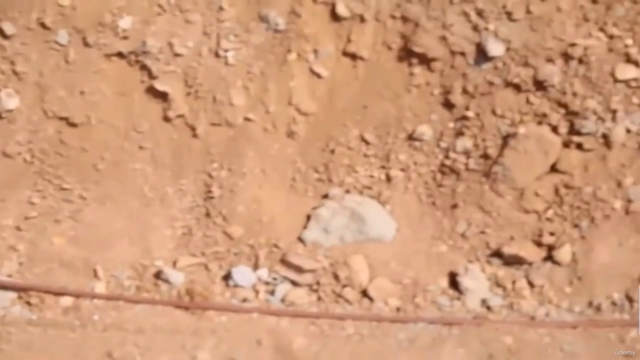

Why We Use The Reinforcement Earthing ?
Grounding the equipment's as per Saudi standard TES-P-119.10
Design Shielding System as per Saudi standard TES-P-119.07
Calculate the Shielding System Protection Zone
