Why take this course?

🏗️ Become a Professional Plumbing Expert - Learn Step by Step Calculations from Basic to Advanced Level

Course Overview:

Embark on a comprehensive journey through the intricacies of plumbing design and calculations with our online course, "Step by Step Design & Calculation of Plumbing System - Part 2/2." This course is meticulously crafted for professionals and students aspiring to master the art of plumbing system design. By the end of this course, you'll have a robust understanding of both sanitary and stormwater drainage systems, ventilation systems, basement drainage systems, and building external drainage systems.

Course Structure:

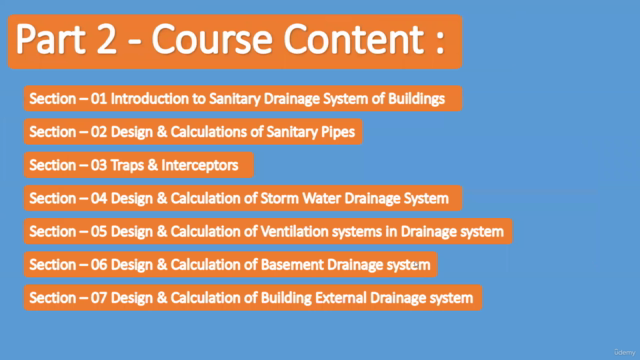

Section – 01: Introduction to Sanitary Drainage System of Buildings

  • 🏠 Understanding Sanitary Drainage Pipework: A foundational overview of the sanitary drainage system within buildings, including single stack, one pipe, and two pipe systems.
  • 📈 Slope Mathematics: Master the art of calculating the necessary slope for pipes to ensure efficient drainage.
  • ✏️ Selection of Pipe Slope: Learn the significance of selecting the right pipe slope and how it impacts your design.

Section – 02: Design & Calculations of Sanitary Pipes

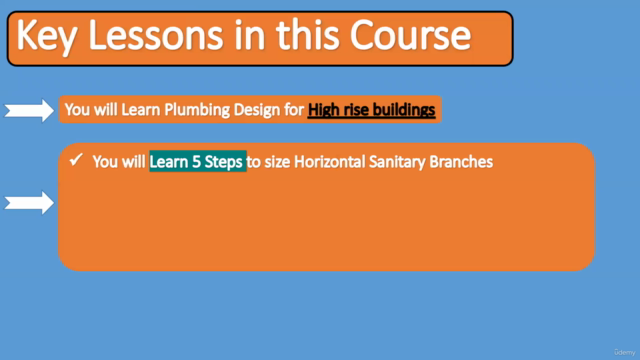

  • 🚽 Sanitary Pipework Design: Dive into the essentials of designing horizontal sanitary branches, stacks, and building drains.
  • 📊 Step-by-Step Sizing Guide: Follow a clear, step-by-step process to correctly size different components of the sanitary system.

Section – 03: Ventilation Systems in Plumbing Design

  • 💧 Stack Venting: Explore various stack venting methods, including stack venting, vent stack, relief vent, yoke vent, and their applications.
  • 🏘️ Active Drainage Ventilation System: Introduction to advanced systems like PAPA (Positive Air Pressure Attenuator) and air admittance valves, along with design guidelines for high-rise buildings.

Section – 04: Basement Drainage System

  • 🔍 Basement Drainage System Overview: Learn about sump pumps, ejector pumps, and their role in basement drainage.
  • 🎡 Sump Pit & Ejector Pit Design: Gain practical knowledge on designing sump pits for sump pumps and ejector pits.

Section – 05: Building External Drainage System

  • 🌍 External Foul Drainage Concept: Understand the layout and design of external foul drainage systems in buildings.
  • 🛠️ Manhole & Inspection Chamber Design: Learn about different types of manholes, their locations, and the importance of design considerations.

Section – 06: Stormwater Drainage System

  • ☔️ Understanding Invert Level: Learn how to calculate invert levels for efficient stormwater drainage system design.
  • 📍 Design & Location of Manholes/Inspection Chambers: Essential design considerations and step-by-step guide to designing manholes and inspection chambers.

Learning Outcomes:

Upon completion of this course, you will:

  • Have a clear understanding of the different types of plumbing systems.
  • Be able to calculate slopes, sizes, and locations for sanitary and stormwater pipes.
  • Know how to design effective ventilation systems for both passive and active drainage applications.
  • Understand the specific requirements for basement and external drainage systems.
  • Possess the skills to apply your knowledge to real-world scenarios with confidence.

Why Take This Course?

This course is designed to equip you with practical, hands-on knowledge that is applicable across various plumbing projects. With a blend of theoretical understanding and practical applications, you'll be well-prepared to tackle the complexities of plumbing system design. Whether you're a professional engineer, a student in the field, or someone looking to enhance your DIY skills, this course offers valuable insights that will set you apart in your career.

Enroll Now!

Embark on your journey to mastering plumbing system design with our expert-led course. 🛠️⚙️ Enroll today and unlock the door to a world of opportunities in the plumbing industry!
