Devices and Circuits - Wiring & Busbars
Let's learn about important components inside electrical cabinets - wiring (conductors) and busbars systems (60mm)
4.00 (27 reviews)
121
students
1 hour
content
Apr 2020
last update
$15.99
regular price
What you will learn
WIRING: Wire color / cross section - represent properly in EPLAN
WIRING: Wire color standard including special cases - with examples
WIRING: Common wire types used to wire components inside electrical panels
WIRING: Short circuit proof cable/conductor - when and why to use it
WIRING: External voltage / power supply - special wire color - requirement in some contries (e.g. Germany)
WIRING: Ground wire - color IEC/NFPA

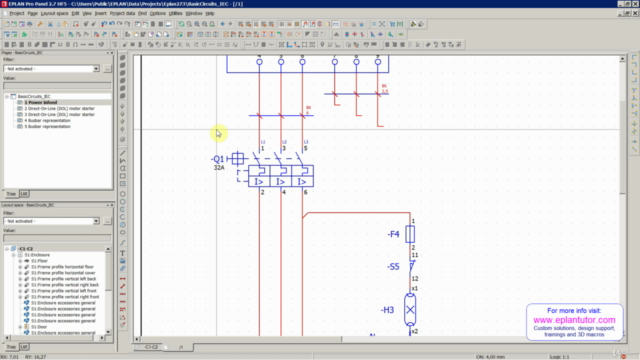

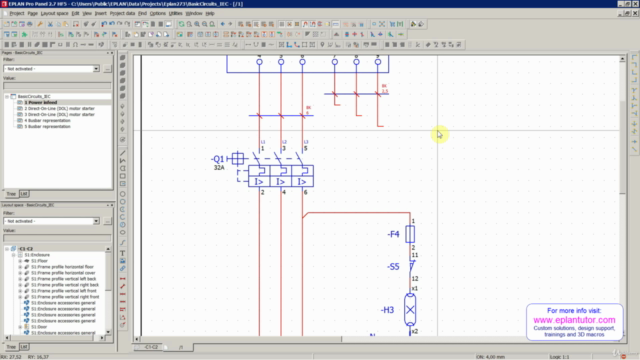

BUSBARS - how to represent them properly in EPLAN
BUSBARS - components necessary to build a 60mm Rittal RiLine60 busbar system
BUSBARS - properly dimension busbars for the necessary current consumption
BUSBARS - calculate heat loss parameter of a busbar
BONUS TREAT - 119 photos of electrical cabinet from real-life international projects

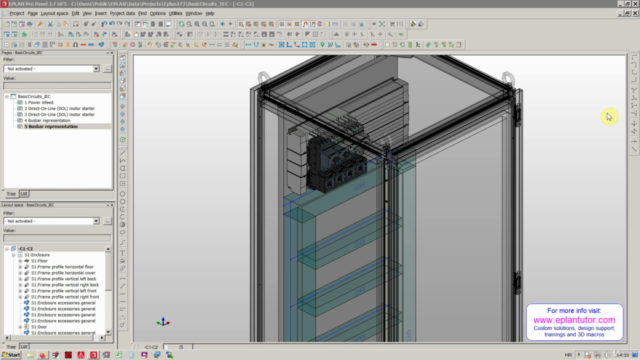

BONUS TREAT - Rittal RiLine60 busbar system in 3D in Eplan PRO PANEL
