Revit 3D Reinforcement Workshop With Dynamo

🏗️ Course Headline:

🌟 Revit 3D Reinforcement Workshop With Dynamo Assistance 🌟

🚀 Course Description:

Welcome to the ultimate workshop for architects and engineers who want to master the art of creating 3D reinforcement in Revit with the powerful assistance of Dynamo! 🛠️✨

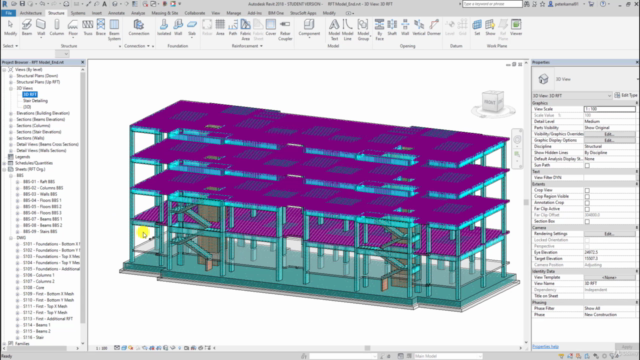

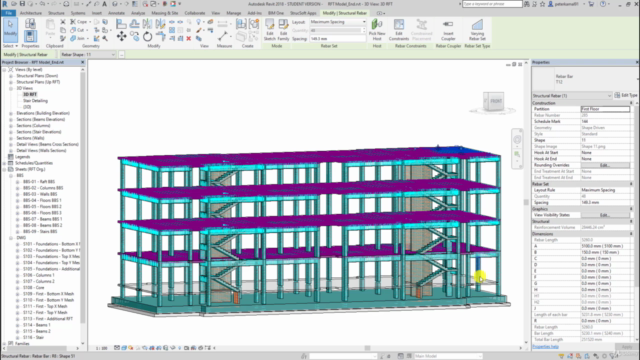

In this comprehensive course, we'll embark on a journey starting with a simple concrete building model and progressing through all stages of reinforcement creation. From laying out the raft foundation to designing the complex geometry of column necks and walls, you'll learn how to handle every type of reinforcement within Revit's robust environment.

📑 Key Learnings:

• Hands-On Experience: You'll dive into creating raft reinforcement both manually and with the aid of Dynamo scripts. We'll also cover columns, column necks, walls, first-floor slabs, beams, and their respective reinforcement step by step.

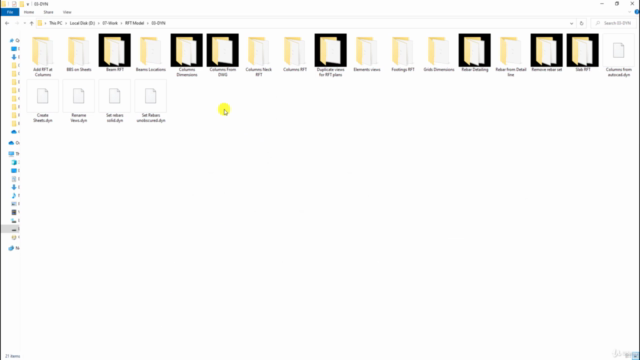

• Enhance Your Workflow: Learn to automate repetitive tasks with Dynamo, saving you time and effort, and streamlining your workflow for future projects.

• Detailed Documentation: Create detailed column views, beam views, plan views, and annotate them with precision using Dynamo's capabilities.

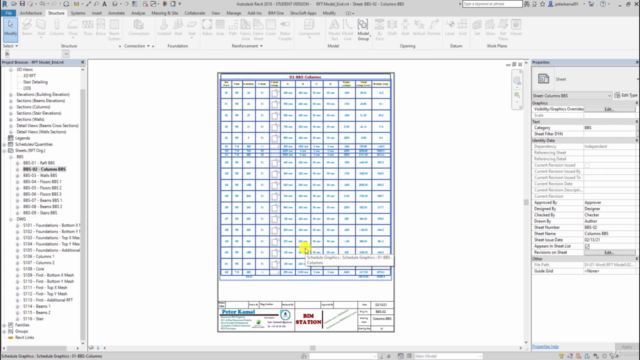

• Comprehensive Sheets & Schedules: By the end of this workshop, you'll be equipped to generate complete sheets and detailed bar bending schedules (BBS) for each element.

🛠️ Why Join This Workshop?

• No Prior Dynamo Experience Required: If you're a Revit user looking to expand your skills with Dynamo, this workshop is perfect for you! We'll guide you through every step without prior knowledge of Dynamo being necessary.

• Revit Expertise Essential: This workshop assumes that you are familiar with using Revit Structure. If you're new to Revit, we recommend getting comfortable with the basics before joining.

• Software Versions: We'll be utilizing Revit 2018 and a specific version of Dynamo (1.3.3) throughout this workshop. Rest assured, the techniques taught here are adaptable to newer versions of these software tools.

🎓 What You Will Get:

• Complete Project Files: You'll receive all the Revit project files used during the workshop, so you can practice and learn at your own pace.

• Customized Revit Template: A specialized Revit template for reinforcement will be provided to kickstart your projects with best practices.

Embark on this transformative learning experience and take your Revit and Dynamo skills to the next level! 🌐🚀
