Mastering Medium Voltage Schematics Episode 01

🌟 Mastering Medium Voltage Schematics - Episode 01 🌟

Course Headline:

Unlock the Secrets of Electrical Power Engineering with Industry Experts!

Course Description:

Welcome, aspiring and seasoned engineers alike! The ability to interpret engineering drawings is not just a skill but a cornerstone of effective problem-solving in the realm of electrical power systems. These drawings are the blueprints that guide us through the design, implementation, troubleshooting, maintenance, and operational phases of our projects.

At the heart of this expertise lies an understanding of standard procedures and familiarity with the basic symbols used in electrical schematics. As we embark on our journey to master medium voltage schematics, we'll cover a range of critical topics, starting with the essentials of single-line diagrams (SLDs).

Understanding Single-Line Diagrams:

A single-line diagram (SLD) is a vital tool in electrical engineering. It provides a simplified representation of an electrical power system that includes all the necessary details to plan and assess without overwhelming complexity. There are two main types of SLDs:

1. System SLD: A high-level view of the entire system, focusing on key components and performance characteristics.
2. Equipment SLD: A detailed representation of a specific component, such as transformers, motors, or switchboards, within the system.

Key Components of a Single-Line Diagram:

A comprehensive SLD should include:

1. 🔋 Power Sources: Indicating voltage levels and available short circuit currents.
2. 🛠️ Conductor Specifications: Size, ampacities, types, and total numbers.
3. 🌐 Transformers' Information: Ratings, capacities, impedances, voltages, vector groups, and grounding arrangements.
4. 🛡️ Protective Elements: Types (fuse, breaker, relay) and quantities.
5. ⚫️ Instrument Transformers (CT & PT): Ratios for current and potential transformers.
6. 🆔 Capacitors and Surge Arrestors: Locations and types.
7. 🏠 Loads: Understanding load flow calculations and network planning.
8. 🛫 Other Distribution Equipment: Including feeders, switches, etc.
9. ⚠️ Relay Settings on Utility Source: For phase and ground faults.

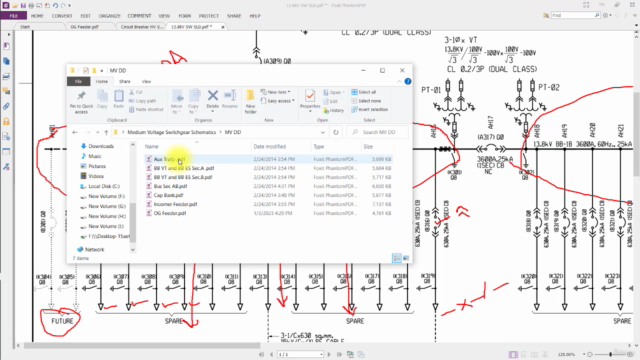

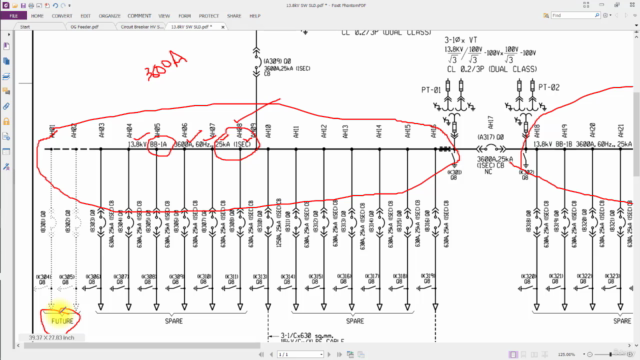

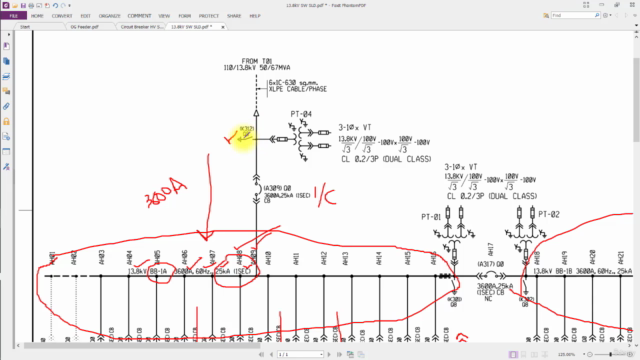

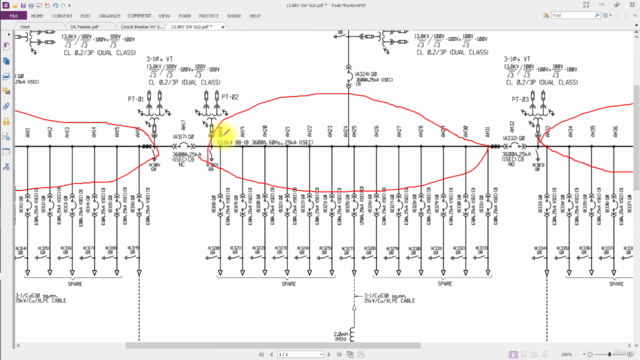

Reading a Single-Line Diagram:

A SLD typically flows from top to bottom, starting with the utility supply or incomer and proceeding towards the load centers. Pay close attention to each component's details as you follow the diagram's flow.

For complex systems with multiple voltage levels, it's crucial to focus on transformers and ensure they are properly matched in terms of impedance, voltage, vector group, and turns ratio.

Analysis and Protection Components:

The protective components and instrument transformers in the SLD provide insights into the protection functions implemented within the system. These are numbered according to ANSI/IEEE C37.2 standards, which are widely referenced in literature.

Course Structure:

• Introduction to Engineering Drawings and Their Importance
• Detailed Walkthrough of Single-Line Diagrams (SLDs)
  • Understanding the Components of an SLD
  • Symbols and Interpretation
  • Reading SLDs from Top to Bottom
• Exploring Different Voltage Levels and Transformer Matching
• Protection Functions and Numbering System (ANSI/IEEE C37.2)

By the end of this course, you will have a solid grasp of medium voltage schematics, enabling you to design, analyze, and maintain power systems with confidence. Join us on this electrifying educational journey! 🕯️⚡
