Introduction to Electronics

Editorial course preview

What the public course preview actually shows

These 4 complementary views highlight concrete, legible examples from the course presentation.

A screenshot of CircuitLab software displaying an RC circuit schematic with a 6V source, resistor, switch, and capacitor, alongside simulation settings and inset photos of lab test — Preview 1 of 4
This screenshot shows a digital RC circuit simulation setup in CircuitLab, featuring a voltage source, resistor, switch, and capacitor for time-domain analysis.

A close-up view of hands assembling an electronic circuit on a white breadboard using resistors and jumper wires, with a multimeter and power supply visible in the background. — Preview 2 of 4
This image demonstrates the practical assembly of an electronic circuit on a breadboard, showing how components like resistors are connected to test equipment.

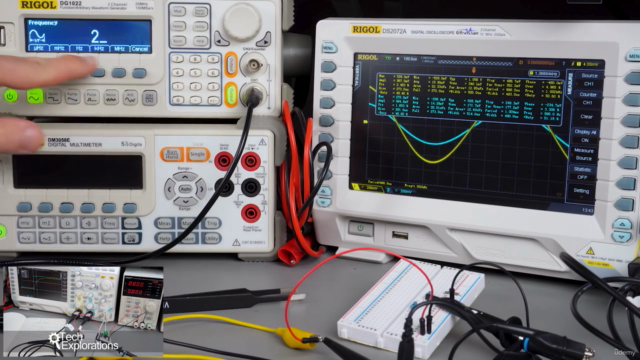

A close-up of electronic test equipment including a Rigol function generator, digital multimeter, and oscilloscope displaying sine waves, connected via probes to a breadboard on a灰 — Preview 3 of 4
This setup demonstrates how to use a function generator, oscilloscope, and multimeter to measure and verify the behavior of an analog circuit built on a breadboard.

A close-up view of a hand adjusting a Rigol oscilloscope displaying rising waveforms, connected via wires to a breadboard circuit and multimeter on a workbench. — Preview 4 of 4
An engineer adjusts an oscilloscope to analyze the charging curve waveform generated by a breadboard circuit connected to test equipment.
