Electric Vehicle Charging Station. From Basics to Advanced.

Electrical Principles, Voltage Drops, and Siemens' Simaris Design Software: Practical Examples from Scratch to Expert.
4.03 (30 reviews)
Udemy
platform
English
language
Engineering
category
instructor
Electric Vehicle Charging Station. From Basics to Advanced.
162
students
2 hours
content
Apr 2025
last update
$19.99
regular price

Why take this course?

🚗 Master Electric Vehicle Charging Installations & Voltage Drop ⚡️🔋


Course Headline: A.C. & D.C. Charging Stations | Connectors | Design Voltage Drop - Impact on Power Network


Overview of the Course:

Are you intrigued by the world of electric vehicles (EVs) and their charging infrastructure? Our comprehensive online course, "Electric Vehicle Charging Installations & Voltage Drop," is tailored for professionals in the industry, technicians, engineers, and enthusiasts who want to deepen their knowledge about EV charging systems.

Course Description:

Part 1: Standardization and Interoperability

  • International Electrotechnical Commission (IEC): Learn about the global standards set by IEC for EV charging.
  • International Telecommunication Union (ITU) & International Organization for Standardization (ISO): Discover how these organizations contribute to standardizing telecommunications and information systems, impacting EV charging.
  • European & US Standardization: Explore the regional standards that ensure interoperability and safety.
  • IEC 61851-1 / EN 61851-1: Dive into the general requirements for conductive charging systems as per international and European regulations.
  • EV Charging Modes & Levels (SAE J1772): Understand the different types of charging and their capabilities.
  • Choose the Right EV and Charging Station: Gain the knowledge to make informed decisions on EV models and compatible charging stations.
  • Understanding Connectors and Vehicle Inlets: Learn about the various connectors, pin configurations, and sleeve designs for both A.C. and D.C. charging systems.

Part 2: Advanced Topics

  • Alternative Voltage Definitions: Explore the different voltage standards used in EV charging.
  • Voltage Drop in Radial Electric Networks: Learn how voltage drop affects power distribution and its implications for EV charging infrastructure.
  • Problems with Voltage Drop: Identify common issues that arise due to voltage drop in networks with high load concentrations.
  • Impact of the Integration of EV Charging Stations in Electrical Distribution Networks: Understand how EV charging stations interact with existing electrical networks and what this means for network design and operation.
  • BS 7671 and Voltage Drop Calculation: Learn about the British Standard for electrical installations and how to calculate voltage drop correctly, considering factors like operating temperature and load power factor.

What You Will Learn:

  • A.C. & D.C. Charging Systems: Get a detailed understanding of both Alternating Current (A.C.) and Direct Current (D.C.) charging systems, including their plugs, socket-outlets, vehicle connectors, and vehicle inlets.
  • Main International and European Standards: Familiarize yourself with the key standards like IEC 61851- and IEC 62196 that govern EV charging systems.
  • Connector Configurations: Learn about various connector configurations such as Chademo, CCS1, CCS2, GB/T, Combo 1, and Combo 2.

Course Benefits:

By completing this course, you will:

  • Enhance Your Technical Knowledge: Gain a deep understanding of EV charging systems, standardization, and how they impact network design and performance.
  • Make Informed Decisions: Be equipped to select the right EV models and installations for your clients or organization.
  • Improve Network Efficiency: Understand how to mitigate voltage drop issues in electrical distribution networks.
  • Ensure Safety and Compliance: Stay informed about the latest standards and regulations that ensure safety and interoperability in EV charging.

Whether you're a seasoned professional or just starting out, this course will provide you with the essential knowledge to navigate the complexities of electric vehicle charging installations and voltage drop issues within power networks. 🔋⚡️

Join us on this electrifying journey and become an expert in the rapidly evolving field of electric mobility! Enroll now and electrify your career!

Course Gallery

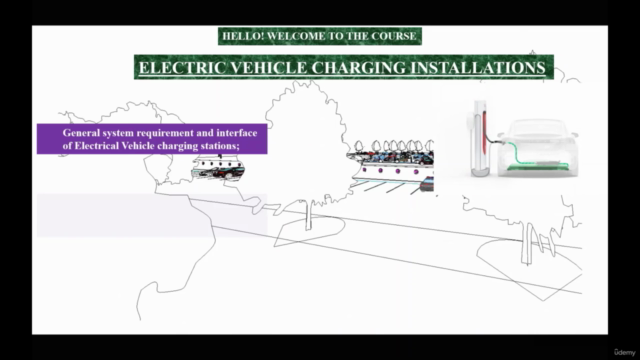

Electric Vehicle Charging Station. From Basics to Advanced. – Screenshot 1
Screenshot 1Electric Vehicle Charging Station. From Basics to Advanced.

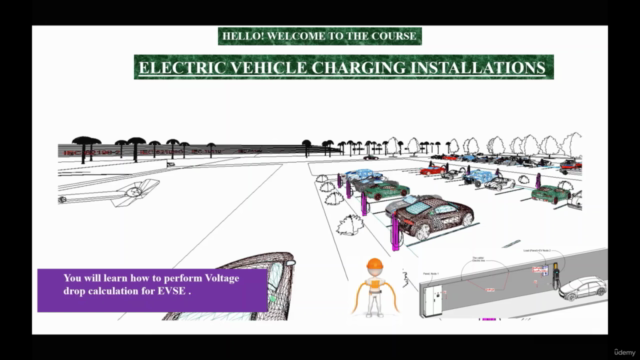

Electric Vehicle Charging Station. From Basics to Advanced. – Screenshot 2
Screenshot 2Electric Vehicle Charging Station. From Basics to Advanced.
Electric Vehicle Charging Station. From Basics to Advanced. – Screenshot 3
Screenshot 3Electric Vehicle Charging Station. From Basics to Advanced.

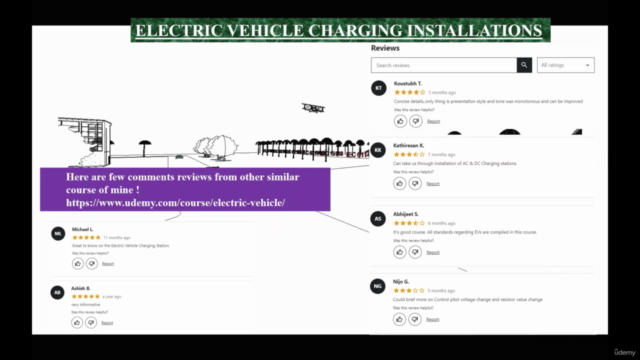

Electric Vehicle Charging Station. From Basics to Advanced. – Screenshot 4
Screenshot 4Electric Vehicle Charging Station. From Basics to Advanced.
