Calibration, Installation & Commissioning of Instrumentation

🛠️ Master the Art of Field Instrumentation with Our Comprehensive Course!

🚀 Course Title: Calibration, Installation & Commissioning of Instrumentation – A Step-by-Step Guide to P&ID, Hazardous Area, and Process Control

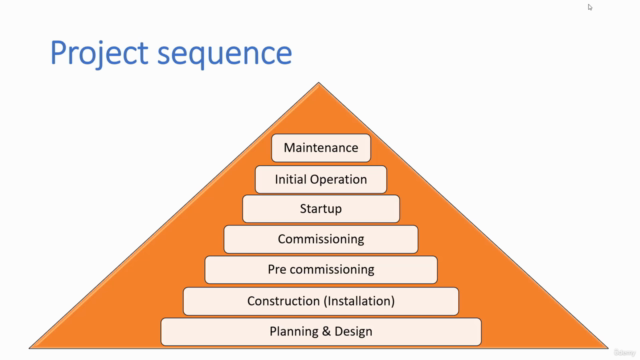

🔍 Understanding the Project Life Cycle for Process Field Instrumentation

The journey of any industry project is a complex dance of planning, design, installation, pre-commissioning, commissioning, startup, initial operation, and maintenance. As an Engineer, grasping each phase of this life cycle is crucial for the safe, efficient, and timely execution of plant facilities. Let's dive into each stage to ensure your success in the field.

📝 Planning: Setting the Foundation for Success

• 🚨 Risk Assessment: Safety is paramount! We kick off with essential risk assessments like HAZOP to ensure our processes are both safe and effective.
• ✅ Completion Priority: Prioritizing tasks effectively to stay on track.
• 📄 Documents: Keeping all necessary documentation organized and accessible.
• ✈️ Manpower: Understanding the human element, including team composition and allocation.
• 🛠️ Tools: Ensuring you have the right equipment for each task.

🖨️ Design: Crafting the Blueprint of Your Success

• 📈 Design Basis: Establishing the foundational requirements for your project.
• 📉 P&ID Design: Mastering Process & Instrumentation Diagrams (P&IDs) is key to designing effective systems.

🏗️ Installation: Bringing Your Design to Life

• 🧩 Instrument Location Planning: Identifying where instruments, junction boxes, and cable routing will go.
• 🦺 Static Equipment Setup: Installing civil foundations, structural, and mechanical static equipment first.
• 📏 Instrumentation Team Activities: Beginning instrument installation based on available work fronts.

🔄 Pre-Commissioning: Ensuring Everything is in Order Before Powering Up

• ✅ Calibration Verification: Confirming that your instruments give accurate readings.
• 🔁 Cold & Hot Loop Checks: Testing wiring integrity and system functions, both without and with power.
• ✔️ Stand Alone Tests: Ensuring no damage has occurred post-installation.
• ⚫️ Factory Acceptance Testing (FAT): Verifying new control systems before they leave the manufacturer.
• 🔁 Site Acceptance Testing (SAT): Confirming equipment functions as part of the system at the site.
• ✅ Site Integration Testing (SIT): Ensuring the entire system functions together harmoniously.

🚦 Commissioning: The Phases of Bringing Your System Online

• 💧 Cold Commissioning: Testing systems and subsystems without process fluids yet.
  • 🔼 Dry Run: Conducting tests and procedures to check interlocks, emergency shutdowns, and control system sequences without fluids.
• 💦 Wet Commissioning: Introducing safe fluids into the systems for real-world testing.
  • 🔄 "Running pumps with closed loops": A typical activity during wet commissioning.
• 🔥 Hot Commissioning: Operating the plant with design process fluids, preparing for full-scale operation.
  • 🔄 "Running pumps with closed loops": Again, a key activity to ensure system functionality with actual process conditions.

💡 Startup: The Moment Your Plant Comes Alive

• 🏭 Initial Operation: Ramping up to full continuous operation and fine-tuning the plant for optimal performance.

⚙️ Maintenance: Keeping Your Plant Running Smoothly

• 🔧 Preventive Maintenance: Regular checkups to avoid downtime.
• ⚠️ Corrective Maintenance: Responding promptly to any issues that arise.
• 🔭 Predictive Maintenance: Using advanced techniques like sensors and AI for proactive maintenance.
• ⚖️ EMERGENCY Maintenance: Being prepared for the unexpected with quick response protocols.
• 🏗️ RENOVATION Maintenance: Updating and improving your systems over time.

Join us on this enlightening journey through the intricacies of field instrumentation, where every detail is a step towards excellence in your professional career. We hope you'll enjoy this comprehensive learning experience as much as we enjoy delivering it! 🌟
