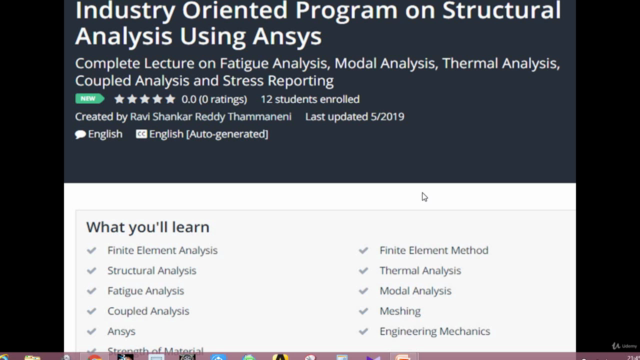

Industry Oriented Program on Structural Analysis Using Ansys

🎓 Industry Oriented Program on Structural Analysis Using ANSYS 🚀

Course Headline:

Complete Lecture on Fatigue Analysis, Modal Analysis, Thermal Analysis, Coupled Analysis, and Stress Reporting

Course Description:

This comprehensive course has been meticulously designed to equip you with the knowledge of Finite Element Analysis (FEA) and Finite Element Method (FEM) at an industrial level. Ravi Shankar Reddy Thammaneni, our esteemed instructor, leverages years of experience to ensure that the course content mirrors real-world project execution in the industry.

What You Will Learn:

• Industry Practices: The course is structured to provide a working environment akin to industry standards, ensuring that students are well-prepared to meet the demands of client projects.
• Comprehensive Coverage: From Pre-Prepossessing to Post-Processing, this course covers all necessary topics essential for solving complex structural problems.
• Hands-On Experience: With the material provided, you will gain practical experience and be able to execute operations as per industry needs.
• Real-World Application: The methods followed in this course are identical to those used by professionals in the field, ensuring that upon completion, you are not just theoretically proficient but also practically skilled.

Syllabus Overview:

Pre-Prepossessing:

• Introduction to Ansys and FEM principles
• Navigating the Ansys User Interface

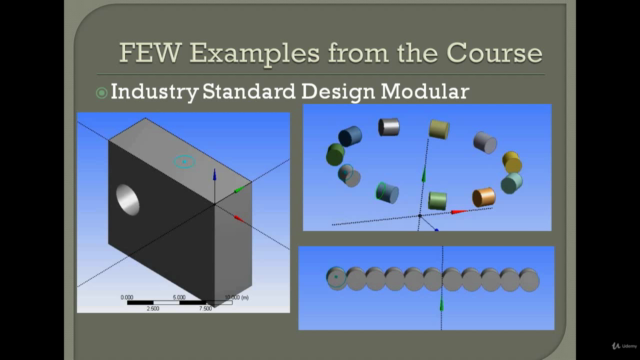

• Mastering Model Creation, including sketching, constraining, modeling, planes creation, defeaturing, idealization, body splitting, slicing, applying fillets/chamfers, incorporating holes/slots, importing/exporting geometries, and combining geometries
• Working with default shapes and applying various materials

Meshing:

• Comprehending the fundamentals of meshes
• Exploring different element shapes (2D & 3D) and mesh types (mapped face, structured, unstructured)
• Understanding the advantages of each mesh type
• Learning mesh layering, size control, quality optimization, and applying loads with appropriate constraints

Solving:

• Running the setup after all preparations are complete

Post-Processing:

• Taking various outputs
• Creating animations for a better understanding of dynamics
• Interpreting results
• Generating automatic reports for clear documentation
• Conducting grid independence studies
• Managing ANSYS projects efficiently

Course Highlights:

• Industry-Specific Focus: Tailored to align with actual industry practices.
• Complete Workflow: From problem setup to result interpretation and report generation.
• Hands-On Learning: Practical exercises that mirror real-world applications.
• Comprehensive Coverage: Ensuring a deep understanding of FEA in structural analysis.

By the end of this course, you will have a solid grasp of how to perform a complete structural analysis using ANSYS, from pre-processing to post-processing, and be fully equipped to produce quality reports that meet industry standards. 🛠️📐📈

Join us on this journey to master the art of structural analysis with ANSYS, and take your career to new heights! 🚀✨
