Industrial Communication by Siemens S7 1200PLC-Real Hardware

Modbus RTU-RS485 , USS , IO-Link , Profinet , MQTT , Node-red , Webserver , Message(SMS)
4.18 (113 reviews)
Udemy
platform
English
language
Software Engineering
category
instructor
Industrial Communication by Siemens S7 1200PLC-Real Hardware
674
students
8.5 hours
content
Apr 2020
last update
$19.99
regular price

Why take this course?


Master Industrial Communication with Siemens S7-1200 PLC 🚀

Course Instructor: Orhan Tarıkcı

Course Title: Industrial Communication by Siemens S7-1200PLC - Real Hardware Skills 🛠️✨


Introduction to the Course:

Discover the world of industrial communication systems and how they can simplify and optimize your projects. With the rise of smart manufacturing, understanding these communication protocols is not just beneficial—it's essential for modern engineers and technicians. This course will guide you through the intricacies of Siemens S7-1200 PLC and its various communication interfaces.

What You Will Learn:

📚 Essentials of Modbus RTU & RS485:

  • Master the basics of Modbus RTU over RS485, a robust communication protocol widely used in industrial settings.
  • Connect and control devices like the Lumel sensor, measuring temperature and humidity, with ease.

🤖 Servo Motor & Speed Controller Control:

  • Learn to interface with Siemens V20 speed controller via both Modbus RTU and USS protocols.
  • Explore the versatile IO-Link communication protocol for efficient PLC communication.

Advanced Communication Protocols:

  • Dive into Profinet, a high-speed industrial Ethernet protocol used for real-time control.
  • Connect Siemens S7-1200 PLC to MQTT and Node-Red for flexible, scalable IoT applications.
  • Set up a webserver with Siemens S7-1200 PLC and create a user interface using HTML and Java.

💡 Practical Applications & Real-World Projects:

  • Send and receive SMS messages to/from the PLC using a GSM module.
  • Control Siemens V90 servo system and gain insights into real hardware implementation.

Hands-On Projects:

  1. Modbus RTU with Lumel Sensor & Kinco Servo Motor:

    • Measure environmental parameters with a Modbus RTU enabled sensor.
    • Control the Kinco servo motor through the Modbus RTU protocol.
  2. Siemens V20 Speed Controller:

    • Experiment with dual communication capabilities: Modbus RTU and USS.
    • Understand and implement the IO-Link protocol for PLC communication.
  3. Webserver & User Interface Creation:

    • Access PLC data through a web browser using the built-in webserver feature.
    • Design and develop an interactive user interface with HTML and Java.
  4. MQTT & Node-Red Integration:

    • Learn to communicate between devices using MQTT, a lightweight messaging protocol.
    • Set up and configure Node-Red for data processing and visualization.
  5. SMS Communication with GSM Module:

    • Implement SMS capabilities in your PLC system.
    • Send and receive messages from the PLC to users or devices.
  6. Control of Siemens V90 Servo System:

    • Gain hands-on experience with advanced servo control systems.

Why Take This Course?

🔍 Practical Exposure: Work with real hardware, not just simulations. 🤝 Industry Relevance: Stay ahead of the curve by mastering the most used communication protocols in industry today. 🎓 Skill Development: Enhance your skills and become proficient in a wide array of industrial communication systems.

Conclusion:

Embark on a journey to become an expert in industrial communication with Siemens S7-1200 PLC. This course will provide you with the knowledge and skills needed to excel in the field of automation engineering, whether you're a beginner or looking to refine your expertise. Join us now and unlock the full potential of industrial communication systems! 🌟


Ready to dive into the world of industrial communication? Enroll in "Industrial Communication by Siemens S7-1200PLC - Real Hardware" today and take the first step towards becoming an expert in automation and control systems! 🎉

Course Gallery

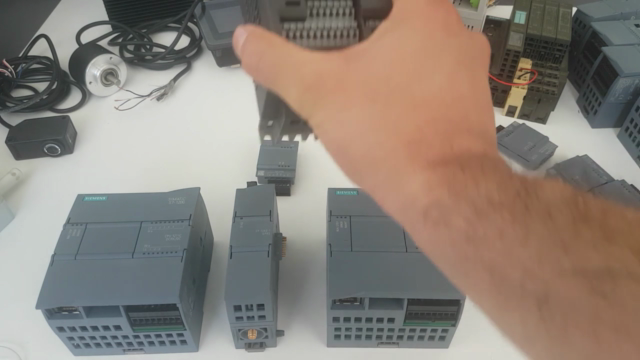

Industrial Communication by Siemens S7 1200PLC-Real Hardware – Screenshot 1
Screenshot 1Industrial Communication by Siemens S7 1200PLC-Real Hardware

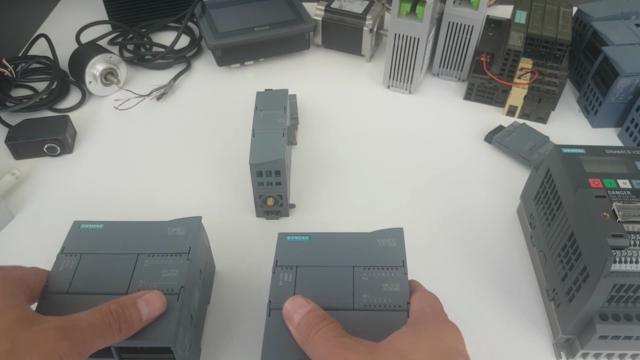

Industrial Communication by Siemens S7 1200PLC-Real Hardware – Screenshot 2
Screenshot 2Industrial Communication by Siemens S7 1200PLC-Real Hardware

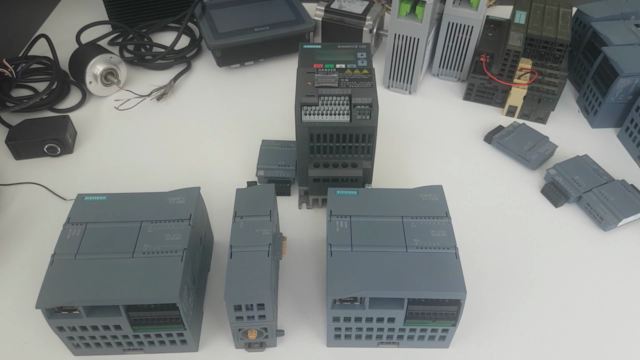

Industrial Communication by Siemens S7 1200PLC-Real Hardware – Screenshot 3
Screenshot 3Industrial Communication by Siemens S7 1200PLC-Real Hardware

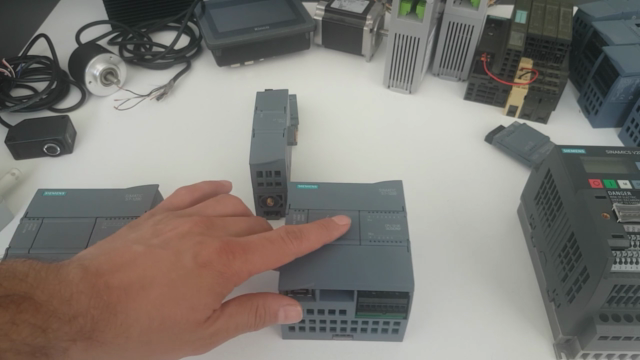

Industrial Communication by Siemens S7 1200PLC-Real Hardware – Screenshot 4
Screenshot 4Industrial Communication by Siemens S7 1200PLC-Real Hardware
