Learn VHDL Design using Xilinx Zynq-7000 ARM/FPGA SoC

🎓 Master VHDL with Xilinx Zynq-7000 SoC: A Comprehensive Online Course for Engineers

Course Instructor: Clyde R. Visser, P.E.
Course Title: Learn VHDL Design using Xilinx Zynq-7000 ARM/FPGA SoC

Unlock the World of FPGA with VHDL on the Zybo Z7 Board

Embark on a journey to become proficient in designing and simulating digital systems using VHDL, the hardware description language that powers FPGAs, ASICs, and VLSI technologies. This course is meticulously crafted for both novice and experienced engineers who wish to harness the capabilities of the Xilinx Zynq-7000 SoC using the Vivado Design Suite on the Digilent Zybo Z7 FPGA Development Board.

What You'll Learn:

📚 Core Concepts of VHDL: Dive deep into the syntax and semantics of VHDL, the cornerstone for logic synthesis and design.

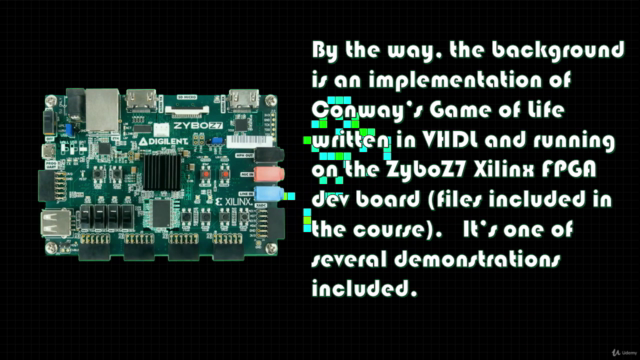

🔧 Hands-On with Zybo Z7 Board: Get practical experience with the Zynq-7000 ARM/FPGA SoC Development Board, allowing you to bring your designs to life.

⚛️ Vivado Toolset Mastery: Learn to navigate and utilize Xilinx's powerful Vivado Design Suite for efficient design flows.

🔬 Designing Test-benches: Craft effective test-benches in VHDL to validate your designs with confidence.

📈 Developing VHDL Models: Translate real-world problems into VHDL models that are both synthesizable and practical.

Course Outline:

• VHDL Syntax and Semantics: Understand the language at its core.
• Synthesizable Designs in VHDL: Create designs that can be transformed into physical hardware.
• Zybo Z7 Development Board: Engage with hands-on learning using this versatile development board.
• Xilinx Vivado Toolset: Become adept at using the essential tools for your projects.
• Test-bench Design in VHDL: Learn to design and develop robust test-benches to validate your designs.
• VHDL Modeling Techniques: Develop models that can be reused and applied to different scenarios.

Prerequisites:

• Digital Logic Design Fundamentals: A solid grasp of digital logic design principles is recommended, or equivalent experience.

Elevate Your VHDL Skills:

If you're already familiar with VHDL but want to expand your knowledge and capabilities, this course offers advanced insights for you as well! Here's what you'll gain by joining us:

• Advanced VHDL Features: Learn how to utilize advanced features of VHDL that go beyond the basics.
• Improving Your Designs: Discover techniques to optimize and enhance your VHDL designs.
• Real-World Applications: Apply your knowledge to real-world scenarios, ensuring you can transfer your skills into practical settings.

Why Choose This Course?

This course is designed to take you beyond the fundamentals of VHDL and the Zynq-7000 SoC. You'll delve into finite state machine design, two-process design methodology, test-bench design, combinatorial and sequential logic, and creating extensible, synthesizable designs that are not only functional but also reusable.

By the end of this course, you'll have a deep understanding of VHDL, enabling you to confidently tackle complex FPGA projects with the Zynq-7000 SoC on the Zybo Z7 development board. Whether you're looking to reinforce your existing knowledge or start from scratch, this comprehensive course is tailored to guide you every step of the way.

🎁 Enroll Now and Transform Your Design Capabilities with VHDL and Xilinx Zynq-7000 SoC!
