Setup the Micrologix 1400 PLC for Modbus RS485 Communication

Learn how to configure the Allen-Bradley Micrologix 1400 PLC for Modbus RS485 Communications in Master and Slave modes
4.63 (106 reviews)
Udemy
platform
English
language
Other
category
instructor
Setup the Micrologix 1400 PLC for Modbus RS485 Communication
365
students
1.5 hours
content
Jun 2021
last update
$39.99
regular price

Why take this course?


Course Title: Setup the Micrologix 1400 PLC for Modbus RS485 Communication 🛠️💻

Course Headline: Master and Slave Configuration Mastery for Allen-Bradley Micrologix 1400 PLCs


Course Description:

🚀 Why This Course?

You might think that mastering the Modbus protocol for a specific PLC is a niche skill. But let me tell you, it's anything but! Modbus is the backbone of communication in the automation industry, and the Allen-Bradley Micrologix 1400 PLC is a fan favorite for good reason. After countless requests from learners like you, it's time to dive deep into setting up this powerhouse for Modbus RS485 communications, both as a master device and a slave device.

🎓 What You'll Learn:

This course is a treasure trove of practical knowledge, designed to take you from a beginner to an expert in no time. Here's what we'll cover:

  • The Basics of Modbus Protocol: Understand the foundation of this essential communication protocol.

  • Hardware Configuration: We'll start with setting up your Micrologix 1400 PLC hardware for RS485 communication.

  • Software Setup: Learn how to configure the software settings necessary for Modbus communication on the PLC.

  • Modbus Master Mode: Get hands-on experience in configuring your Micrologix 1400 as a Modbus master device, initiating communication with other devices.

  • Modbus Slave Mode: Transition to setting up your PLC as a Modbus slave device, responding to commands from other master devices.

  • Testing Communication: We'll put theory into practice by creating a simple network and testing the communication between two devices.

👨‍💻 Real-World Application:

This course mirrors real-world scenarios, ensuring that what you learn here will directly apply to your job. You'll see how Modbus communications function in practical settings and gain confidence in configuring and troubleshooting PLC networks.

🎯 Your Journey to Mastery:

By the end of this course, you'll be equipped with the knowledge and skills to confidently configure your Allen-Bradley Micrologix 1400 PLC for Modbus RS485 communications in both master and slave modes. You'll understand the nuances, the potential pitfalls, and how to navigate them.

📈 Join the Learning Adventure:

Are you ready to take your PLC expertise to the next level? Enroll in this course today and embark on a learning adventure that will transform the way you approach Modbus communication with the Micrologix 1400. Let's configure, test, and master the art of PLC communication together!


Enroll Now and Elevate Your Skills in PLC Communication! 🌟

Course Gallery

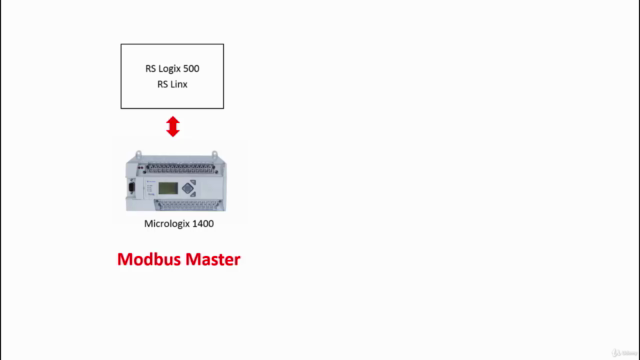

Setup the Micrologix 1400 PLC for Modbus RS485 Communication – Screenshot 1
Screenshot 1Setup the Micrologix 1400 PLC for Modbus RS485 Communication
Setup the Micrologix 1400 PLC for Modbus RS485 Communication – Screenshot 2
Screenshot 2Setup the Micrologix 1400 PLC for Modbus RS485 Communication

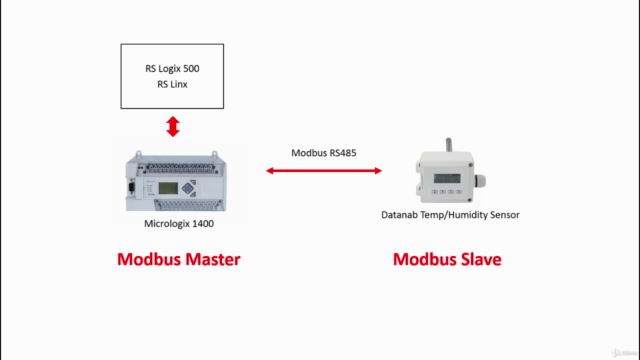

Setup the Micrologix 1400 PLC for Modbus RS485 Communication – Screenshot 3
Screenshot 3Setup the Micrologix 1400 PLC for Modbus RS485 Communication

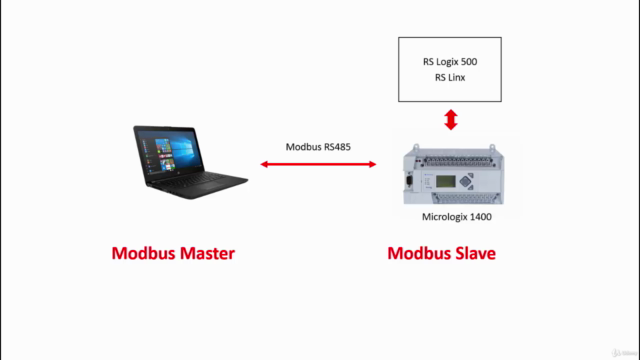

Setup the Micrologix 1400 PLC for Modbus RS485 Communication – Screenshot 4
Screenshot 4Setup the Micrologix 1400 PLC for Modbus RS485 Communication
