Mastering Microcontroller: STM32-LTDC, LCD-TFT, LVGL (MCU3)

Editorial course preview

What the public course preview actually shows

These 4 complementary views highlight concrete, legible examples from the course presentation.

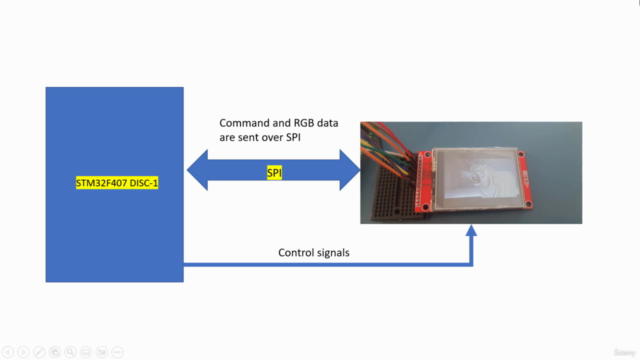

Block diagram illustrating an embedded graphics system with an STM32F407x microcontroller connected via SPI interface and control signals to a 320x240 LCD-TFT display module. — Preview 1 of 4
This block diagram illustrates the architecture of an embedded graphics system, showing how the STM32F407x microcontroller connects to an LCD-TFT display via SPI.

A screenshot of a Visual Studio IDE displaying C++ source code on the left and an active LVGL Simulator window running a settings interface with a calendar widget on the right. — Preview 2 of 4
This screenshot demonstrates the development environment showing C++ source code alongside the LVGL Simulator, which is actively rendering a settings menu with a calendar widget for testing.

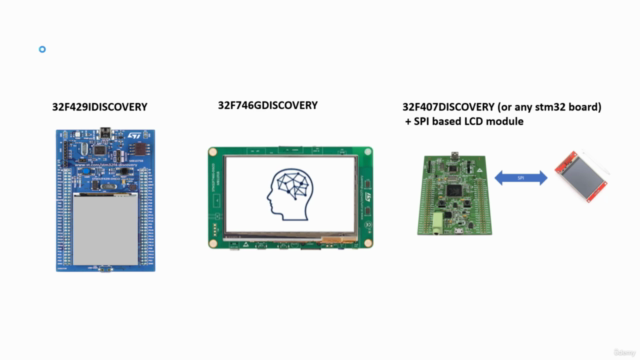

Comparison slide displaying three STM32 hardware setups: a blue 32F429IDISCOVERY board, a green 32F746GDISCOVERY board with an active screen showing a brain graphic, and a 32F407D1 — Preview 3 of 4
This slide compares three STM32 development configurations: the integrated 32F429IDISCOVERY, the display-equipped 32F746GDISCOVERY, and a generic board paired with an external SPI LCD module.

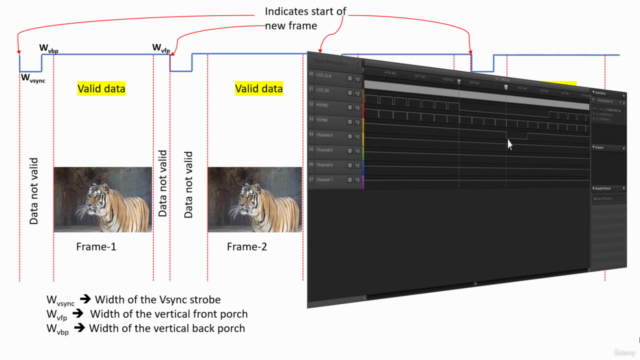

Oscilloscope waveform diagram showing LCD synchronization signals with annotations for vertical back porch, front porch, and vsync width. — Preview 4 of 4
This oscilloscope analysis visualizes LCD synchronization timing, highlighting the specific widths of the vertical back porch, front porch, and vsync strobe.
