Design with KiCad 5
Quick, systematic, and complete course to learn KiCad for your PCB design.
4.33 (90 reviews)
393
students
11 hours
content
Jan 2022
last update
$13.99
regular price
What you will learn
This course is based on a previous version of KiCad which is KiCad 5, if you are willing to study the new KiCad 7 please look for "DESIGN WITH KICAD " course
Using KiCad for Printed Circuit Board design.
Starting from schematics to the ready to manufacture designs.

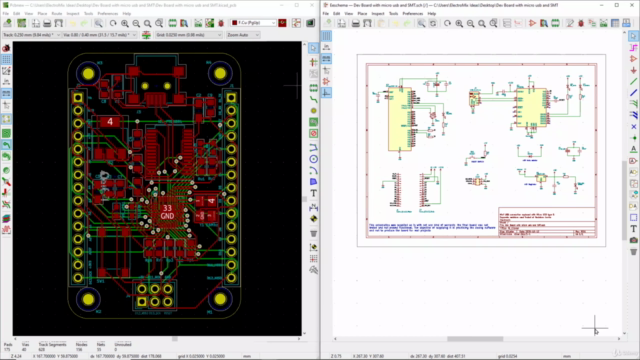

Using the schematics editor and the PCB Layout Editor for generating ready to manufacture designs.
Using Electrical Rule Checker(ERC) and Design Rule Checker (DRC)
General Idea about PCB types.
Calculating tracks widths and spacing using KiCad Calculator.
PCB design beyond connoting pads and tracks.
BOM generation and sending designs to manufacturers and a look at the manufactured boards.

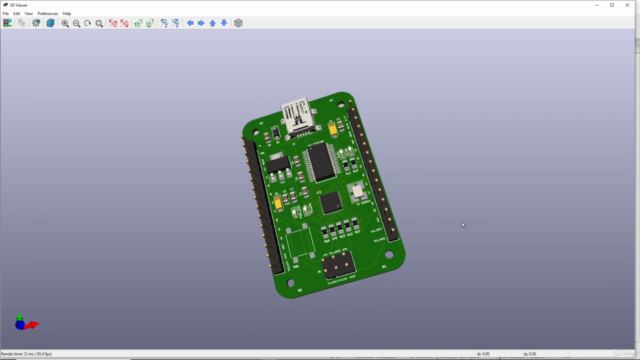

3D View of the project and exporting to 3D design software
Course ends with two real projects.
