Practical Hand on with verified circuit diagram and codes. Step by Step Guidance to make it easy for all age of students
InstructorDr. D. D. ZalaEditorial course preview
These 4 complementary views highlight concrete, legible examples from the course presentation.

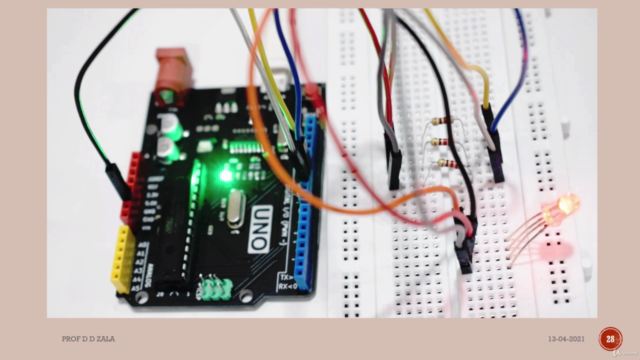

A physical electronics setup showing an Arduino Uno board with a glowing green LED, connected via jumper wires to a white breadboard containing resistors and an LED.
A schematic diagram illustrating the wiring of an Arduino UNO board to a DHT11 sensor module using red, black, and yellow wires.
A split-screen view displaying Arduino IDE code for a BlinkLed sketch alongside a physical Arduino Uno board.
Annotated diagram of an Arduino Uno board showing the pin layout with six specific digital pins highlighted in orange boxes to indicate PWM channels.
Lessons focus on specific hardware integration, including LCD displays, Seven Segment Displays, and DHT11 sensor data conversion.
The course structure incorporates quizzes at various intervals to reinforce learning after specific modules.
One signal from 2022 suggests potential distractions from audio echo, fast pacing, and cluttered screen captures during demonstrations; however, the 2024 update label does not prove these issues were corrected.
The curriculum aligns well with the stated goals for beginners and those seeking a refresher.
Free
